Elevators, a crucial component of modern buildings, offer efficient vertical transportation systems. Understanding elevator dimensions is essential for smooth operation and compliance with building codes and accessibility standards. From residential to commercial buildings, elevator dimensions vary based on specific requirements and building types. Elevator dimensions encompass various aspects such as the shaft size, cab dimensions, door width, and load capacity. Whether it’s a standard passenger elevator, a freight elevator for heavier loads, or a specialized hospital elevator, meticulous attention to detail is vital for the safety and quality of life of occupants. Choosing the right elevator dimensions involves assessing space constraints, determining load capacity needs, selecting the appropriate elevator type, and consulting with manufacturers to ensure structural integrity and compliance with regulations.
Understanding Elevator Dimensions: The Basics
Elevator dimensions are pivotal in the realm of vertical transportation systems. These measurements encompass the size and space considerations crucial for the efficient operation of different types of elevators. Understanding elevator dimensions, including shaft dimensions and cab size, is fundamental in ensuring compliance with accessibility standards and local building codes. Whether it involves the average residential elevator or commercial elevators in office buildings, meticulous attention to elevator dimensions is essential for structural integrity and safety. Varying elevator dimensions cater to specific requirements, from passenger elevators in commercial buildings to freight elevators in industrial facilities, each designed with distinct shaft dimensions and load capacities to facilitate smooth operation and maximum safety.
Standard Elevator Dimensions
When considering standard elevator dimensions, various factors come into play to ensure compliance with safety regulations and functionality. Passenger elevators typically have a width of around 6 feet and a depth of 7 feet, accommodating an average of 8-10 people. Freight elevators, designed for heavier loads, have larger dimensions, with widths ranging from 8-10 feet and depths exceeding 7 feet. Hospital elevators prioritize accessibility standards, with wider cab dimensions to accommodate mobility aids. Home elevators vary in size based on residential buildings, with dimensions tailored to fit specific requirements. Industrial facilities often opt for larger elevators, considering the number of people and size of goods to be transported efficiently between different floors.
Passenger elevators
Passenger elevators are a crucial component of vertical transportation systems in various buildings. To meet the American Disabilities Act and accessibility standards, passenger elevators must adhere to specific requirements in terms of size and safety features. Elevator dimensions for passenger elevators in residential and commercial buildings are guided by local building codes and ADA standards. The average residential elevator has standard dimensions, including the depth of the car, door width, and shaft size, ensuring smooth operation and structural integrity. Passenger elevators can vary in size based on the number of people they can accommodate and the weight capacity for carrying passengers comfortably between different floors.
Residential Buildings: Residential elevators are typically smaller, designed to fit within limited spaces. Standard dimensions are approximately 3 feet wide by 4 feet deep (0.91 meters by 1.22 meters), accommodating a few passengers comfortably.

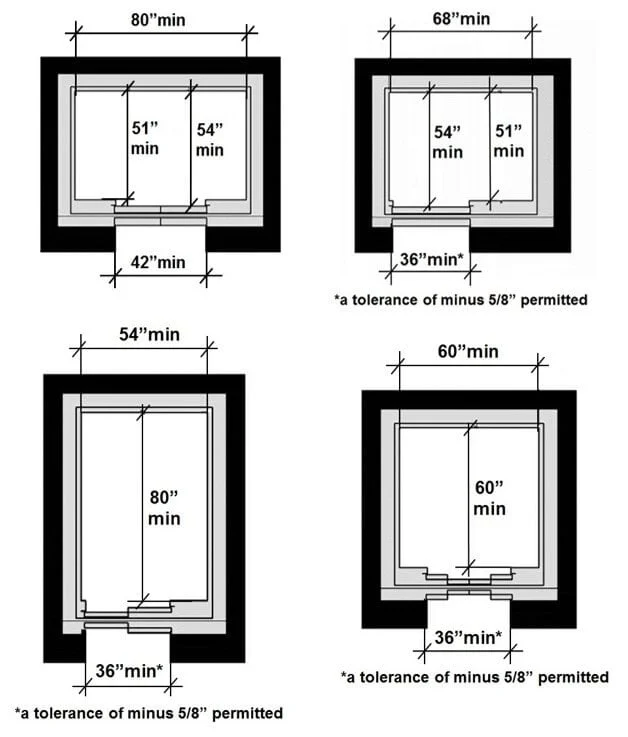

Commercial Buildings: In commercial settings, elevators are designed to handle higher passenger traffic. Standard dimensions include a depth of at least 51 inches (1.30 meters) and a width of 68 inches (1.73 meters). Elevators with center-opening doors require a width of at least 80 inches (2.03 meters).
Freight elevators
Freight elevators, essential for transporting heavy goods and equipment within buildings, have specific requirements that differ from passenger elevators. These industrial workhorses must adhere to stringent weight capacities and larger dimensions to accommodate bulky loads efficiently. The elevator dimensions, including door width, cab size, and shaft dimensions, must align with safety regulations and building codes to ensure smooth operation and structural integrity. Typically found in commercial buildings, freight elevators play a crucial role in supporting various industries by facilitating the movement of heavier loads between different floors. Meeting ADA standards and local building codes is paramount for freight elevators to guarantee the safety of operators and the items being transported.
Freight elevators are built to transport goods and are therefore larger and more robust. Cabin sizes can range from 6 feet by 6 feet (1.83 meters by 1.83 meters) to 10 feet by 10 feet (3.05 meters by 3.05 meters) or more, depending on capacity and intended usage.
Hospital elevators
Hospital elevators are designed with specific requirements in mind, considering the transportation of patients, medical equipment, and staff efficiently. These vertical transportation systems must adhere to stringent safety and accessibility standards, including the American Disabilities Act (ADA) requirements. Hospital elevators typically have larger dimensions compared to average residential elevators to accommodate stretchers and mobility aids. The elevator dimensions, such as the elevator cab and shaft size, are crucial for smooth operation and to ensure the comfort and safety of patients and healthcare personnel. Meticulous attention is paid to the weight capacity, door width, and interior cab layout to meet the unique needs of hospital settings.
Hospitals require elevators that can accommodate stretchers and medical equipment. Standard dimensions range from 5 feet by 7 feet (1.52 meters by 2.13 meters) to 6 feet by 8 feet (1.83 meters by 2.44 meters).
Home elevators
Home elevators in residential buildings serve as vital vertical transportation systems, enhancing accessibility and quality of life. When considering elevator dimensions for a home, meticulous attention to detail is crucial. Factors such as elevator size, cab dimensions, weight capacity, and door width must adhere to both local building codes and American Disabilities Act standards. Home elevators typically have smaller dimensions compared to commercial elevators, with a focus on safety features and smooth operation. Ensuring structural integrity and compliance with ADA requirements guarantees peace of mind for homeowners, allowing for convenient mobility between different floors. Home elevators bring convenience and comfort, tailored to specific requirements for a seamless and efficient experience.
For private residences, compact elevators are designed to fit within limited spaces. A typical home elevator requires a space of at least 5 feet by 5 feet (1.52 meters by 1.52 meters), or 25 square feet of floor space.
Factors Influencing Elevator Dimensions
Factors influencing elevator dimensions encompass the building type, traffic volume, and intended purpose. Commercial buildings often require larger elevators to accommodate numerous passengers efficiently. Residential buildings may opt for average residential elevators based on space availability. Compliance with ADA requirements, such as door width and cab size, is crucial for accessibility. Shaft dimensions and load capacity play a significant role in elevator size selection. Different floors served and the weight capacity needed also impact the dimensions. Meticulous attention to safety features and smooth operation enhances the overall experience and ensures the elevator meets the specific requirements of the building and its users.
Building Type
When considering elevator dimensions for different building types, it’s crucial to factor in specific requirements based on the building’s purpose. Commercial buildings like office facilities typically require larger elevators with higher load capacities to accommodate the transit of numerous individuals throughout the day. Residential buildings, on the other hand, often opt for average elevator sizes suitable for home use. Hospital elevators must adhere to strict accessibility standards outlined by the American Disabilities Act to accommodate mobility aids and ensure smooth operation. Industrial and warehouse facilities usually require freight elevators with ample space and weight capacity to handle heavier loads efficiently.
Load Capacity
Load capacity is very important. It affects how big an elevator needs to be. The weight of people or items that the elevator will move determines the strength and size of its parts.
If the load capacity is high, the elevator car must be bigger. This allows more people or heavier items inside. A stronger lifting system and possibly a bigger machine room are also needed for the elevator equipment.
Because of this, it is important to carefully estimate the load requirements. This helps to figure out the right elevator size and makes sure it works safely and well.
Available Shaft Space
When considering elevator dimensions, the available shaft space plays a crucial role in determining the size of the elevator. The shaft dimensions directly impact the elevator size, including the depth of the car and the shaft size required for installation. Meticulous attention to the shaft dimensions is essential to ensure the structural integrity and smooth operation of the elevator. Factors such as the number of people using the elevator, weight capacity, and safety features must align with the available space in the shaft to meet building codes and safety standards. Selecting the appropriate elevator dimensions based on the available shaft space is integral for a successful vertical transportation system.
Compliance with Regulations
When designing elevators, ensuring compliance with regulations is crucial. Regulations such as the American Disabilities Act (ADA) and local building codes dictate specific requirements for elevator dimensions to guarantee accessibility and safety standards. Elevator shaft dimensions, elevator cab size, door width, and weight capacity are all governed by these regulations. Meeting these standards not only ensures the structural integrity of the elevator but also guarantees smooth operation and safety for passengers. It is imperative to adhere to these regulations to provide a secure vertical transportation system that meets the needs of all individuals, including those with mobility aids, heavier loads, or specific accessibility requirements.
Custom Requirements
When designing elevators to meet custom requirements, various factors must be considered. Each building type has specific needs, necessitating meticulous attention to elevator dimensions. Custom elevator dimensions may be needed for unique spaces like heritage buildings, luxury homes, or specialized industrial facilities. These custom dimensions ensure that the elevator fits seamlessly within the structure while meeting safety and accessibility standards. Elevator manufacturers can cater to these specific requirements by providing tailored solutions that prioritize both functionality and aesthetics, offering a personalized vertical transportation system that enhances the overall design and functionality of the building. Custom elevator dimensions play a crucial role in ensuring a smooth and efficient vertical transportation experience tailored to the building’s individual needs and characteristics.
Elevator Shaft and Door Dimensions
When planning for an elevator, understanding the relationship between the elevator shaft, cab dimensions, and door size is crucial for ensuring a smooth installation and a functional elevator system. The shaft dimensions dictate the maximum allowable size of the elevator cab, while the door size should provide ample clearance for passengers to enter and exit comfortably.
Here’s a general guideline for understanding typical elevator shaft, cab, and door dimensions:
Component | Typical Dimensions (feet) |
Shaft Width | 5-7 |
Shaft Depth | 4-8 |
Cab Width | 3-6 |
Cab Depth | 4-7 |
Door Width | 3-4 (minimum for ADA compliance) |
Door Height | 7-8 |
These dimensions provide a general understanding; however, specific requirements might vary significantly based on factors such as building type, load capacity, and accessibility standards. Consulting with elevator professionals and local authorities is crucial to ensure accurate dimensioning and compliance.
Industry-Specific Elevator Dimension Requirements
In commercial buildings, elevator dimensions play a crucial role in ensuring efficient vertical transportation systems. Elevator shaft dimensions and cab sizes must adhere to specific requirements outlined by local building codes and accessibility standards such as the American Disabilities Act (ADA). For office buildings, the elevator size must accommodate the average number of people expected to use it daily. Similarly, in industrial and warehouse facilities, larger elevators with higher load capacities are essential to transport heavier loads efficiently. Adherence to these industry-specific elevator dimension requirements is paramount for the smooth operation, safety, and quality of life within these diverse settings.
Residential Building
For residential buildings, elevator dimensions play a crucial role in enhancing accessibility and convenience. When considering an elevator for a residential setting, it’s essential to adhere to specific requirements such as ADA standards and local building codes. The average residential elevator in the United States must meet ADA requirements to ensure compliance with accessibility standards. Elevator cab dimensions, door width, and weight capacity are all vital factors to consider when installing an elevator in a residential building. By paying meticulous attention to elevator dimensions and safety features, homeowners can enjoy a smooth operation and improved quality of life within their homes.
Commercial & Office Buildings
For commercial and office buildings, elevator dimensions play a crucial role in ensuring smooth vertical transportation within the premises. Meeting accessibility standards like the American Disabilities Act (ADA) requirements is essential. The elevator shaft dimensions, cab size, and door width need to adhere to specific requirements outlined by local building codes. Commercial elevators in these settings often have larger dimensions to accommodate heavier loads and a higher number of people moving between different floors. Safety features, such as automatic doors and the elevator’s weight capacity, are meticulously designed for the peace of mind of users. Elevator installation in commercial spaces demands meticulous attention to detail to guarantee structural integrity and a seamless user experience.
Hotels & Shopping Mall
Elevators in hotels and shopping malls must adhere to specific requirements for smooth operation and safety. Considering the high traffic and diverse needs of users, elevator dimensions play a crucial role in enhancing vertical transportation systems in these settings. From accommodating mobility aids to ensuring a comfortable and secure ride, meticulous attention to elevator dimensions is essential. Factors such as the number of people using the elevator at once, weight capacity, and interior cab dimensions are carefully considered to provide a seamless experience for guests and shoppers alike. Meeting accessibility standards and local building codes not only ensures compliance but also contributes to the overall quality of life for patrons. Elevator dimensions in hotels and shopping malls directly impact the convenience and satisfaction of visitors, offering them peace of mind during their vertical journeys.
Hospitals & Healthcare Facilities
Hospitals and healthcare facilities require meticulous attention to elevator dimensions to ensure smooth vertical transportation for patients and staff. Meeting accessibility standards, such as the American Disabilities Act (ADA) requirements, is crucial. Elevator shaft dimensions, cab size, and door width must adhere to specific requirements for hospitals to comply with safety and ADA standards. Elevators in these settings often need larger dimensions to accommodate mobility aids, heavier loads, and the transportation of patients on stretchers or in wheelchairs. These elevators play a vital role in maintaining the quality of life for individuals with limited mobility, providing peace of mind and efficient access to different floors within the facility.
Industrial & Warehouse Facilities
Industrial and warehouse facilities often require specific elevator dimensions to efficiently handle the transportation of heavy loads and numerous employees. These settings typically opt for larger elevators with higher load capacities to accommodate the movement of goods and personnel seamlessly. Safety features play a crucial role in industrial elevators to ensure smooth operations and compliance with building codes. The dimensions of elevator cabs in such facilities are meticulously designed to provide adequate space for the transportation of larger items. The shaft dimensions and door widths are also tailored to meet the demands of these bustling environments where efficiency and safety are paramount.
How to Choose the Right Elevator Dimensions for Your Project
Assess your project’s space constraints and load capacity needs first. Consider the elevator type that suits your requirements, whether for a residential, commercial, or industrial setting. Consulting with elevator manufacturers can provide insights into specific requirements like ADA standards and local building codes. For example, residential buildings may have different needs than office buildings. Ensure meticulous attention to details such as elevator shaft dimensions and door width for smooth operation and safety. By considering these factors, you can select the right elevator dimensions that align with your project’s structural integrity and accessibility standards.
Assessing Space Constraints
When evaluating elevator dimensions for a project, assessing space constraints is crucial. Factors such as available space for both the elevator car and shaft must align with specific requirements, including door width and cab size. Meticulous attention to elevator shaft dimensions and the depth of the car is essential to ensure a proper fit within the designated area. Compliance with local building codes, ADA standards, and safety regulations is imperative. Understanding the elevator size needed based on the building type and load capacity requirements is key. By considering these elements, you can select elevator dimensions that not only meet space constraints but also guarantee smooth operation and safety.
Determining Load Capacity Needs
In elevator design, determining the load capacity is paramount to ensure safe and efficient operation. Load capacity refers to the maximum weight an elevator can carry, including passengers and goods. This factor is influenced by various elements like the elevator dimensions, structural integrity, and intended usage. Based on the specific requirements of your project, such as the building type and average traffic flow, careful consideration of the weight capacity is essential. Compliance with accessibility standards like the American Disabilities Act (ADA) requirements is crucial in determining the load capacity to accommodate individuals using mobility aids or heavier loads. By evaluating these factors meticulously, you can select the appropriate elevator size to meet the needs of your building while prioritizing safety and functionality.
Selecting the Right Elevator Type
When selecting the right elevator type, several factors come into play. Consider the specific requirements of the building type and its occupants. For residential buildings, an average residential elevator might suffice, whereas for commercial buildings, compliance with American Disabilities Act (ADA) standards is crucial. Ensure meticulous attention to elevator dimensions, such as the size of the elevator shaft and car, to meet structural integrity and safety requirements. Different building codes may also influence the choice of elevator type, whether it’s a hydraulic elevator for larger loads or a service elevator for industrial facilities. Consult with elevator manufacturers to determine the most suitable elevator type for your project.
Consulting with Elevator Manufacturers
When determining the appropriate elevator dimensions for your project, consulting with elevator manufacturers is crucial. Elevator manufacturers possess the expertise to guide you through the intricate process of selecting the right dimensions based on your specific requirements. They can provide valuable insights into compliance with regulations such as the American Disabilities Act (ADA) requirements and local building codes. By working closely with elevator manufacturers, you ensure meticulous attention to detail in factors like elevator shaft dimensions, cab dimensions, door width, and load capacity. Their knowledge can help guarantee the structural integrity, safety features, and smooth operation of your vertical transportation system, ultimately contributing to a successful and efficient elevator installation.
Conclusion
When you think about elevator dimensions, it’s important to grasp the basics and pay attention to key factors. This is essential for a successful project, whether it is for a building type like a home or a business. Choosing the right dimensions is vital for good use and following the rules. You should look at space limits, figure out your load capacity needs, and talk to elevator makers. This will help you ensure the installation goes smoothly. Each building type has specific requirements, so make sure to choose wisely. For help with elevator dimensions and quotes, reach out to industry experts. Make smart choices to boost your project effectively.
Frequently Asked Questions
What are the standard dimensions for residential elevators?
Standard dimensions for residential elevators typically range from 36 inches to 42 inches in width and 48 inches to 52 inches in depth. The interior height usually varies from 80 inches to 96 inches, accommodating different needs and preferences.
How do elevator shaft dimensions vary with building height?
As buildings get taller, the elevator shaft size needs to grow too. Taller buildings need larger shafts. This is because they have a longer travel distance and the weight of the elevator system. There are also safety features to consider, like fire protection and emergency exits.
